Portable Weighbridge Truck Scale Digital Load Cell,30Ton Hm9B Zemic Load Cell Price 30T Zemic Load Cell
Hot sale products
Hot sale in
FOB Reference Price:Get Latest Price
$46.90 - $89.90
/ Piece
| 10 Piece/Pieces (Min. Order)
- Samples:
- Lead Time:
-
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 30 Negotiable
- Customization:
-
Customized packaging (Min. Order: 1000000 Pieces)
Product Details
Company Profile
Overview
Quick Details
- Place of Origin:
-
China
- Model Number:
-
LP7150
- Brand Name:
-
LOSOCO
- Usage:
-
PRESSURE SENSOR
- Theory:
-
Resistance Sensor
- Output:
-
Analog SENSOR
- Accuracy Class:
-
C3
- Sensitivity (Cn)::
-
2.0 ± 0.002mv/V
- Non-linearity:
-
± 0.02% F.S.
- Creep (30 min):
-
± 0.02% F.S.
- Input Impedance:
-
760 ±10 Ω
- Output Impedance:
-
702 ± 2 Ω
- Safe overload:
-
150% F.S.
- Destructive Load:
-
300% F.S.
- Excitation Voltage:
-
4~12VDC, Max.15VDC for QS load cell
- Item No. Load cell:
-
LP7150 double ended beam QS load cell
- Application:
-
Industrial Automation
- Output Function:
-
OverTemp, UnderTemp
- D/C:
-
LP7150
Supply Ability
- Supply Ability:
- 2000 Piece/Pieces per Month QS load cell
Packaging & Delivery
- Packaging Details
- Foam and export carton for QS load cell
- Port
- Ningbo
- Lead Time :
-
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 30 To be negotiated
Online Customization
Video Description
HOT PRODUCTS
Product Description

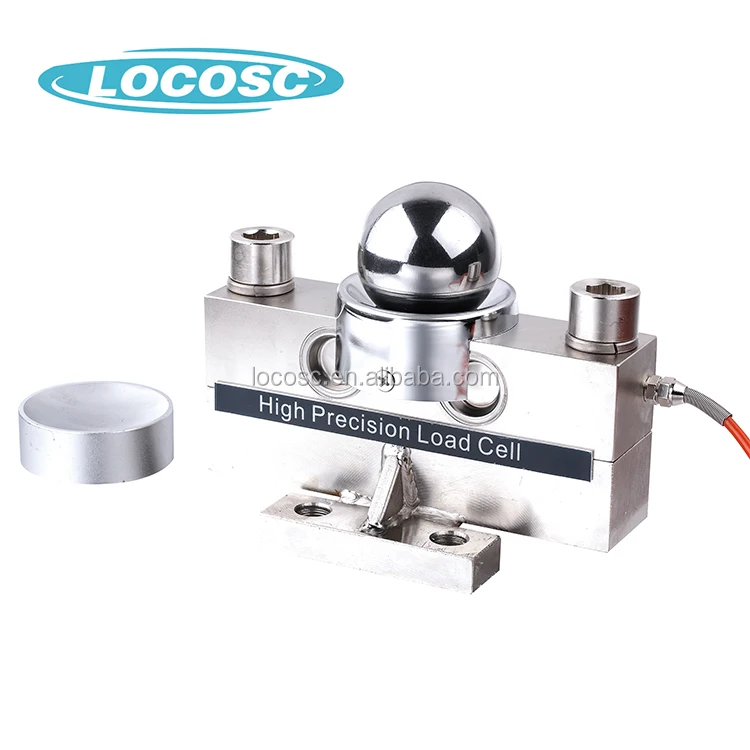

Specification: QS Load cell Normal type and explosion-proof type optional
Technical Parameters | |
Rated load | 10/15/20/25/30/40T |
Precision | C3 |
Sensitivity | 2.0 ± 0.002mv/V |
Nonlinear | ± 0.02% F.S. |
Creep | ± 0.02% F.S./30min |
input resistance | 760±10 Ω |
Output impedance | 702 ± 2 Ω |
Insulation resistance | ≥5000MΩ (50V DC) |
Safety overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Recommended excitation voltage | 4~12VDC |
Maximum excitation voltage | Max.15VDC |
Operating temperature | -10~+40℃ |
Line length | 8~16m |
Normal type Application | weighing bridge,truck,scale,railway scale etc |
Explosion-proof type Application | Explosion-proof electronic platform, explosion-proof electronic platform scale, explosion-proof weighing module, all kinds of explosion-proof electronic weighing system |
Feature Description: | |
LP7110 series load cell can meet the range | 10~40t |
Construction | alloy steel, stainless steel, IP67 |
high precision | |
potting seal, laser welding, oil proof, waterproof, anti-corrosive gas and medium. | |
Double shear beam structure design, automatic reset | |
explosion-proof mark | ExiaICT4Ga |
National Instrument and Meter Certification Explosion Safety Supervision and Inspection Station |
|
Certification number | GYB14.1711X |

Explosion-proof type wiring diagram
More Products
Which type of sensor is right for you? |
We have different types of sensors from 20kg-400t, different kinds of sensors and matching power supply and junction box, etc., there are new explosion-proof products for you to choose, you can choose to contact us for your recommendation, or you can enter our group to choose, I wish Happy shopping
Contact us Explosion-proof products Entering group
Here are our other categories, you can click on the corresponding image to enter the selection
FAQ
1. What is the MOQ?
If we dont have it in stock, theMOQis1OpcsIfwehaveitinstock, we can ship you even 1pc as sample.
2. What is lead time?
If we have it in stock, we canship it to you within about 3-5
working days. If we dont have itin stock, tne lead time will be20~45 days.
3. What is the payment terms?
T/T,/ western Union, L/C, Escrowalibaba is acceptable.
Escrow is same like paypal, afteryou place the order and makeI the payment on alibaba.com,
alibaba company will notify us tomake the shipment, your moneywont be released until you getthe goods.
If we dont make the shipment,you stilll can take back yourmoney.
4. What is tne express delivery?
DHL,. Fedex, TNT ,EMS, UPS etc.We will choose the safe and
cheapest way for you to reduceyour cost.
Economic shipping way: by sea, byair transport
If you place mass order with us, theshipping way of by sea or by airtransport will be ideal choice .
5. What Is the qualty guarantee?
If we dont have it in stock, theMOQis1OpcsIfwehaveitinstock, we can ship you even 1pc as sample.
2. What is lead time?
If we have it in stock, we canship it to you within about 3-5
working days. If we dont have itin stock, tne lead time will be20~45 days.
3. What is the payment terms?
T/T,/ western Union, L/C, Escrowalibaba is acceptable.
Escrow is same like paypal, afteryou place the order and makeI the payment on alibaba.com,
alibaba company will notify us tomake the shipment, your moneywont be released until you getthe goods.
If we dont make the shipment,you stilll can take back yourmoney.
4. What is tne express delivery?
DHL,. Fedex, TNT ,EMS, UPS etc.We will choose the safe and
cheapest way for you to reduceyour cost.
Economic shipping way: by sea, byair transport
If you place mass order with us, theshipping way of by sea or by airtransport will be ideal choice .
5. What Is the qualty guarantee?
Quality guarantee: 12 months.If tne product has quality problemwithin 12 montns, please return it tous, we will repair it; if we cantrepair it successfully, we will giveyou a new one; but the man --madedamage, improper operation andforce majeure will be excepted.And you will pay the shipping costof returning to us, we will pay theshipping cost to you.
6.Is there any after-sale service?
After you receive our product, ifyou have any questions or needany assistance. we can provideyou the after-sale service bye-mail,skype , trade,
manager, telephone, whatsapp orwechat etc.
7. How to contact us?
Whatsapp: +86 15658317616(mobile phone number)Skype: terry130706Wechat: terry-smileQQ: 2242740093
Click here to contact us
Contact us now
We will reply in 24 hours.
6.Is there any after-sale service?
After you receive our product, ifyou have any questions or needany assistance. we can provideyou the after-sale service bye-mail,skype , trade,
manager, telephone, whatsapp orwechat etc.
7. How to contact us?
Whatsapp: +86 15658317616(mobile phone number)Skype: terry130706Wechat: terry-smileQQ: 2242740093
Click here to contact us
Contact us now
We will reply in 24 hours.
